How To Set The Network On A 2Way screen

How To Set The Network On A 2Way screen

This Document will guide you through setting up the network settings for a 2Way screen. This is usually done when a 2Way device's SIM card is replaced. You may also use this as a reference point to assist the client with checking settings ensuring the device is provisioned correctly.

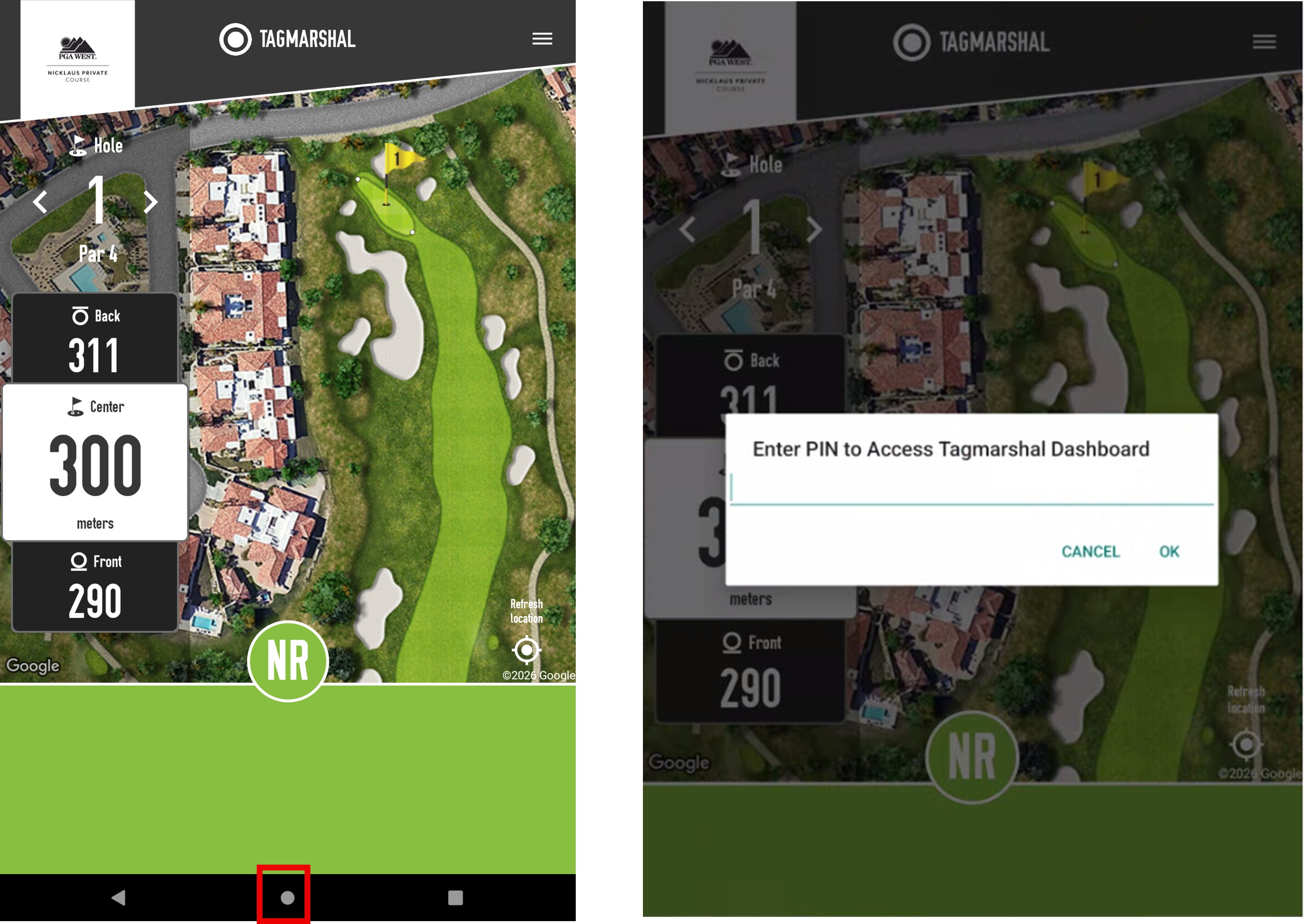

  • Exit from the Map screen by swiping across the screen as shown in the image

  • The App will require a passcode (6745) that you will enter and select OK.

  • Select Exit Scalefusion from the Menu List

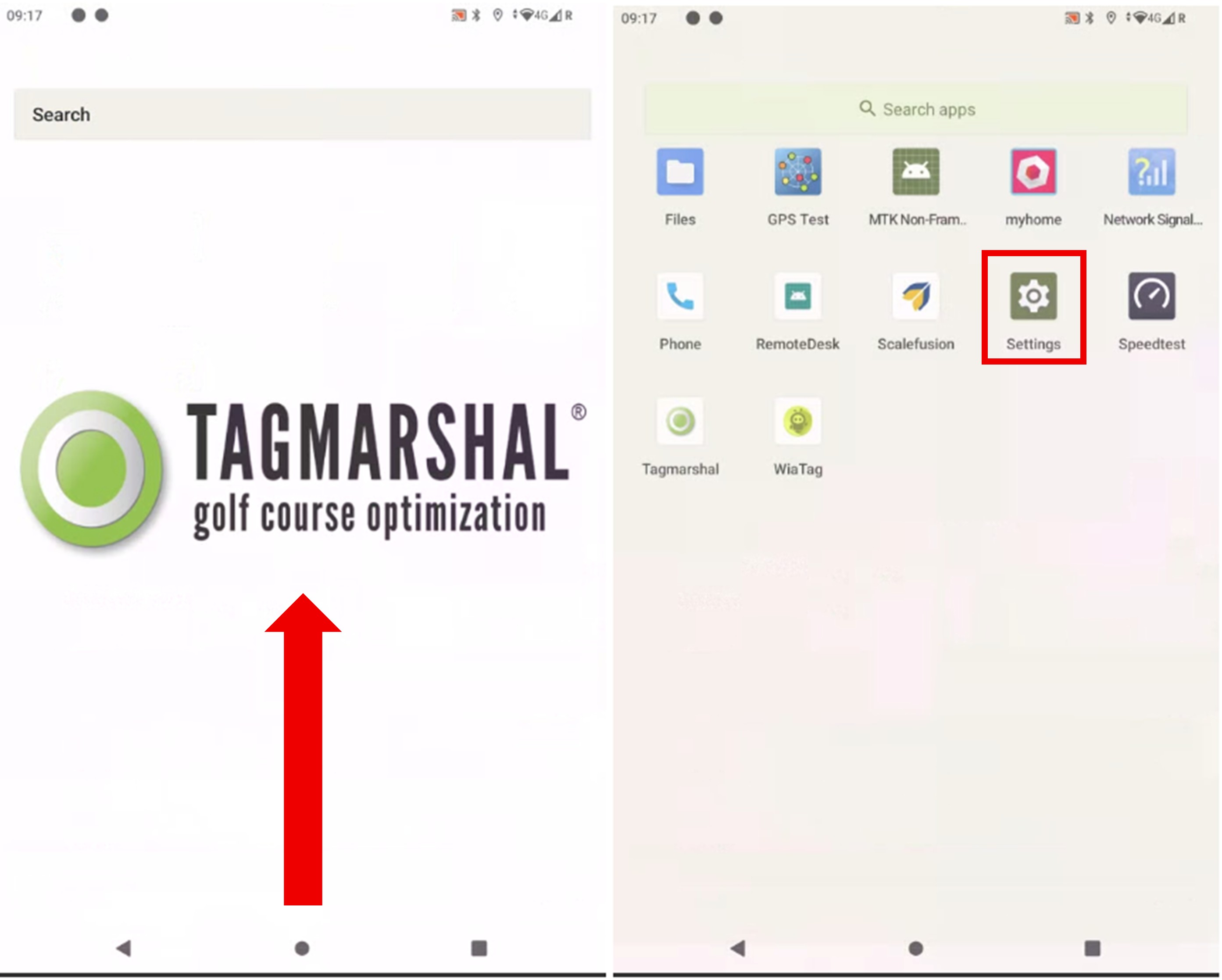

  • Swipe From the Bottom Up of the screen

  • Select Settings from the Apps Screen

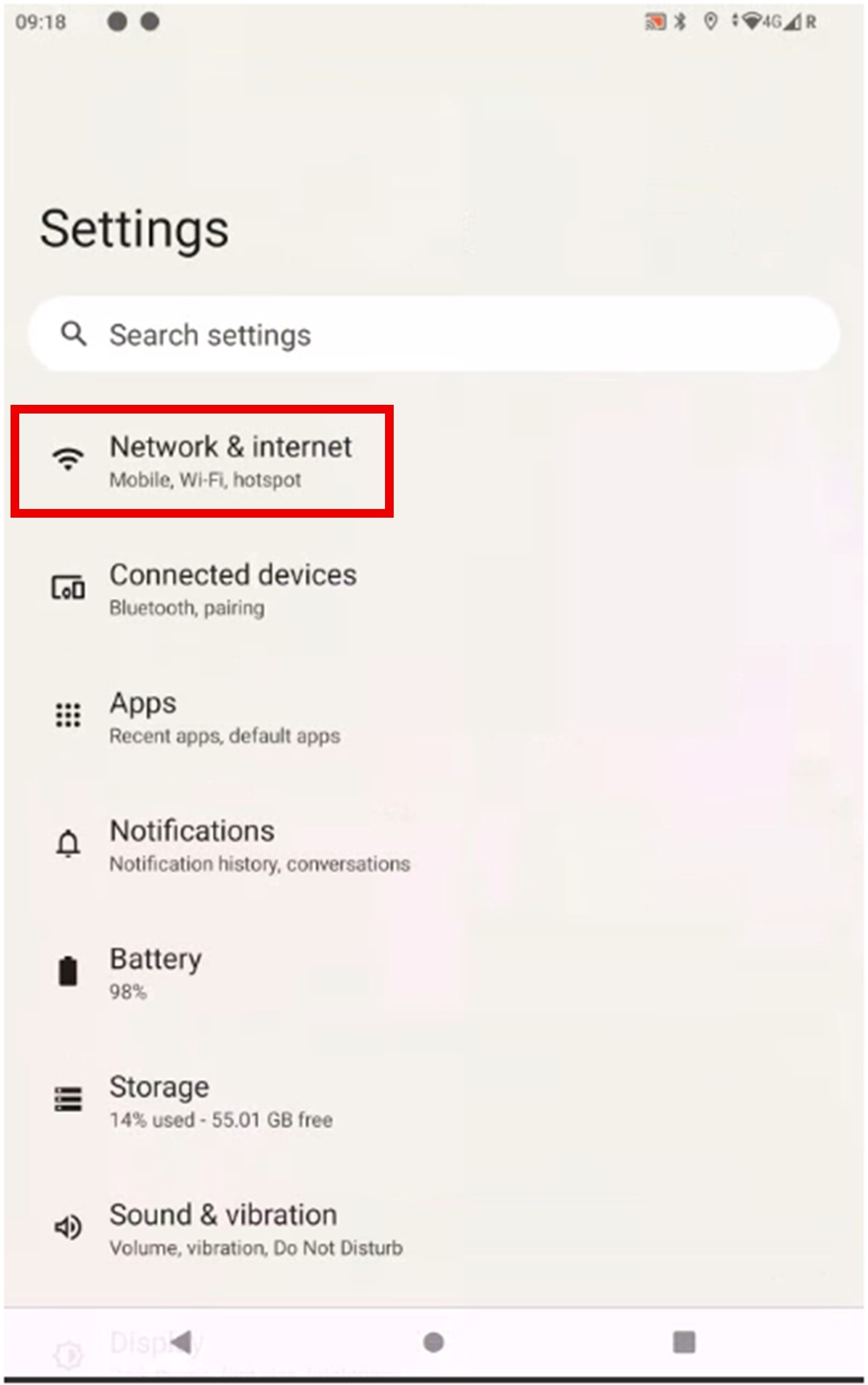

  • Open Network and Internet

  • Select the Mobile Network

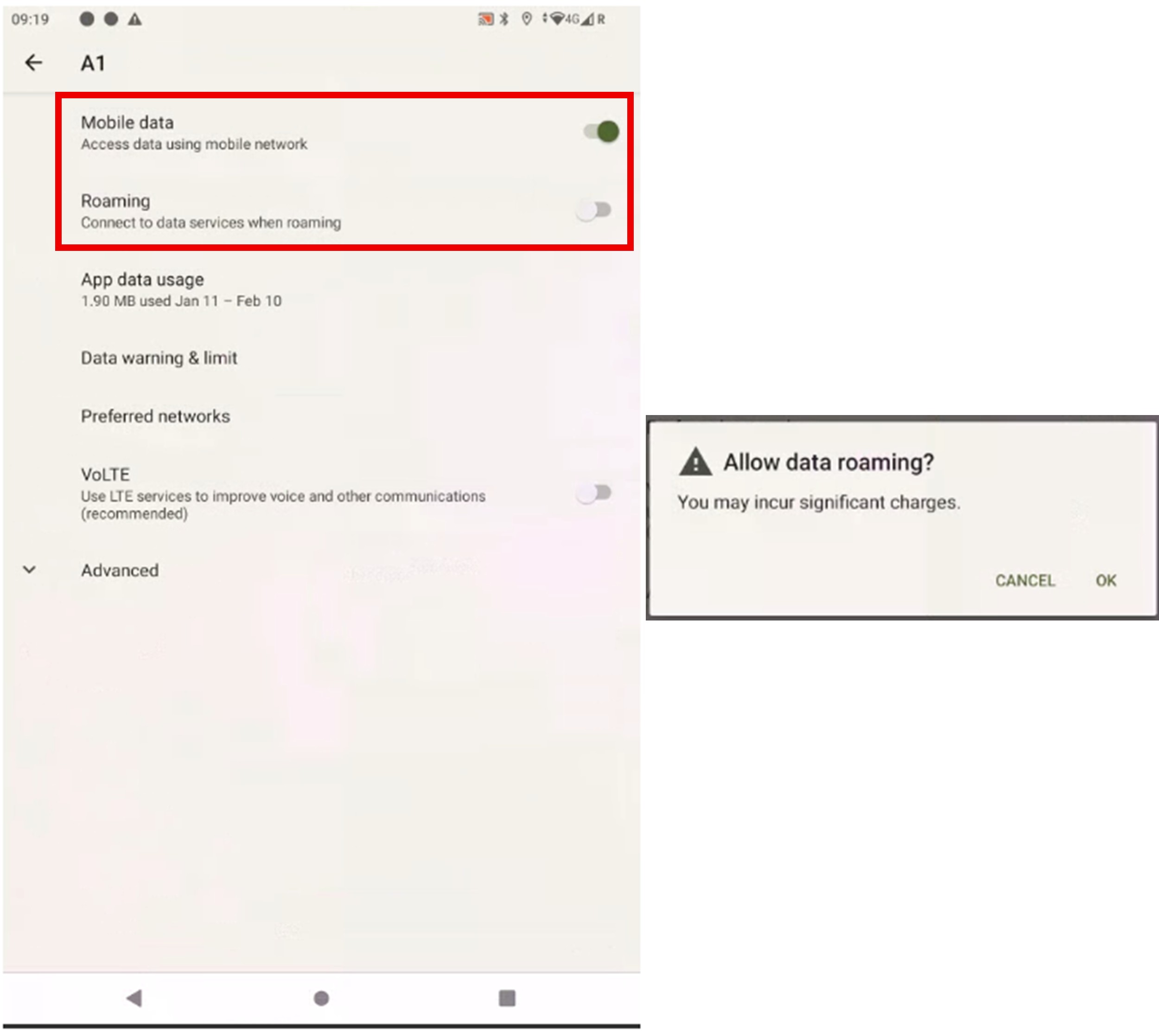

  • Ensure the Mobile Data is ON and Turn the Data Roaming ON

  • Confirm the selection (OK)

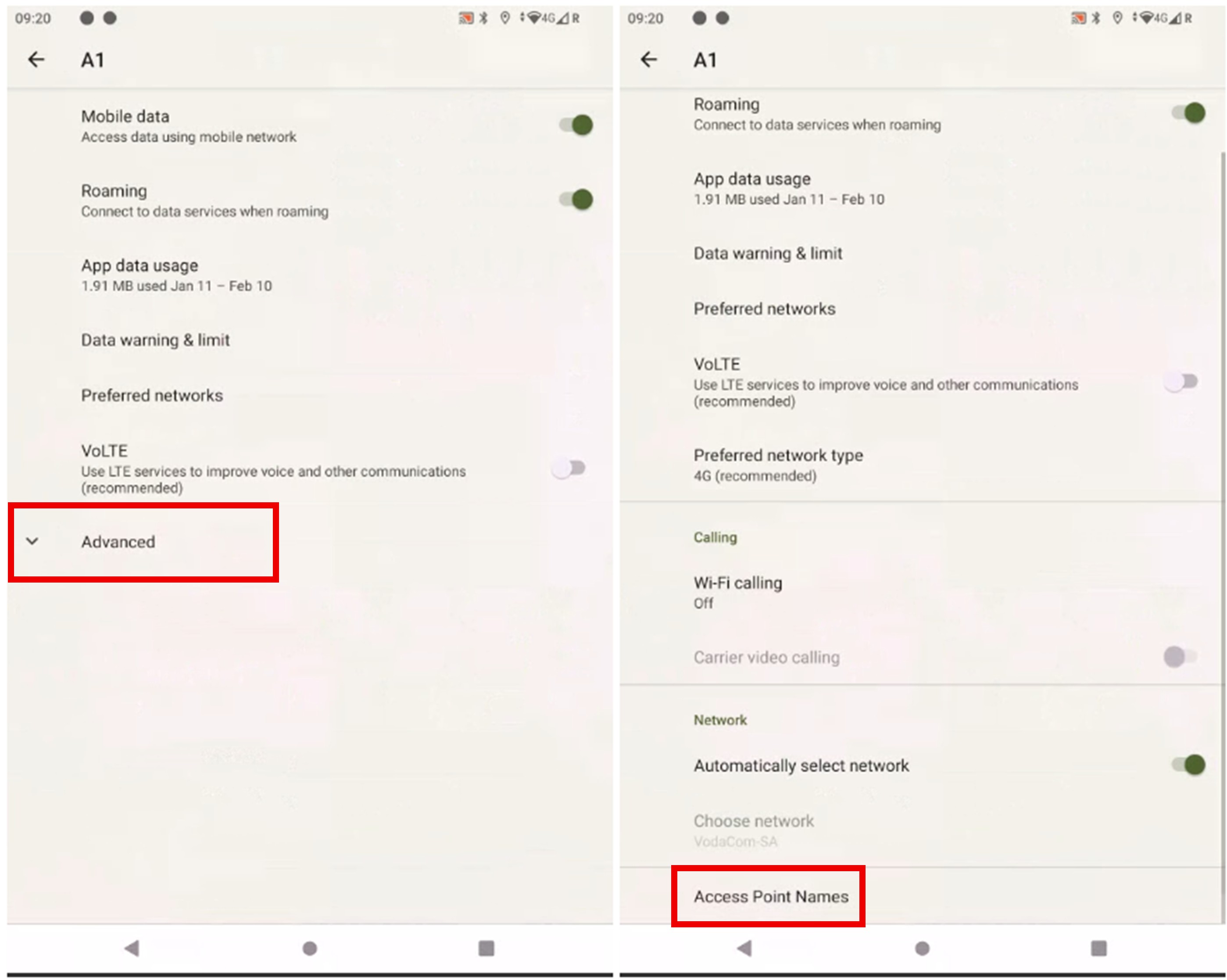

  • Select the Advanced Option at the Bottom of the list and Open Access Point Names

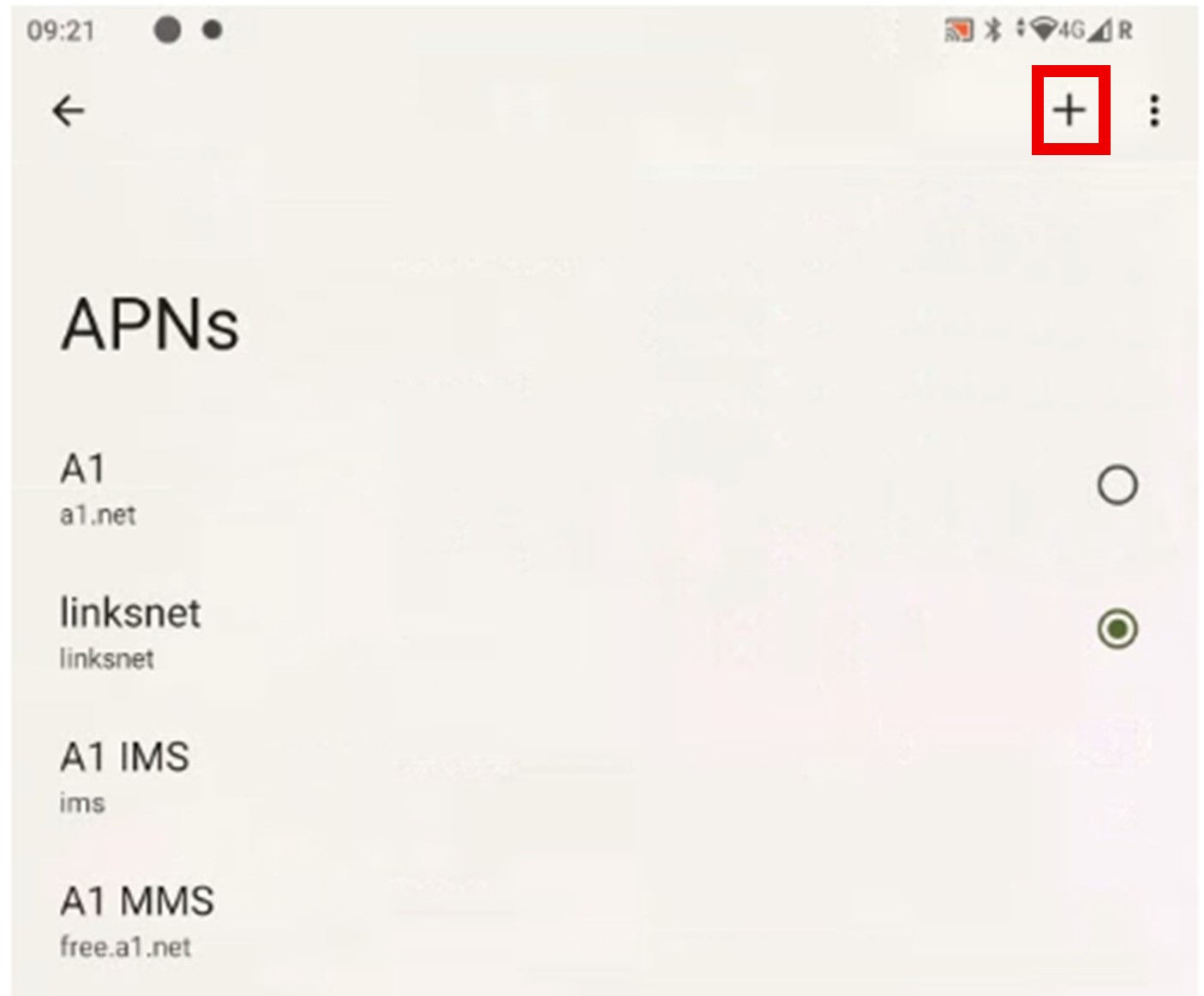

  • Add a new APN as shown

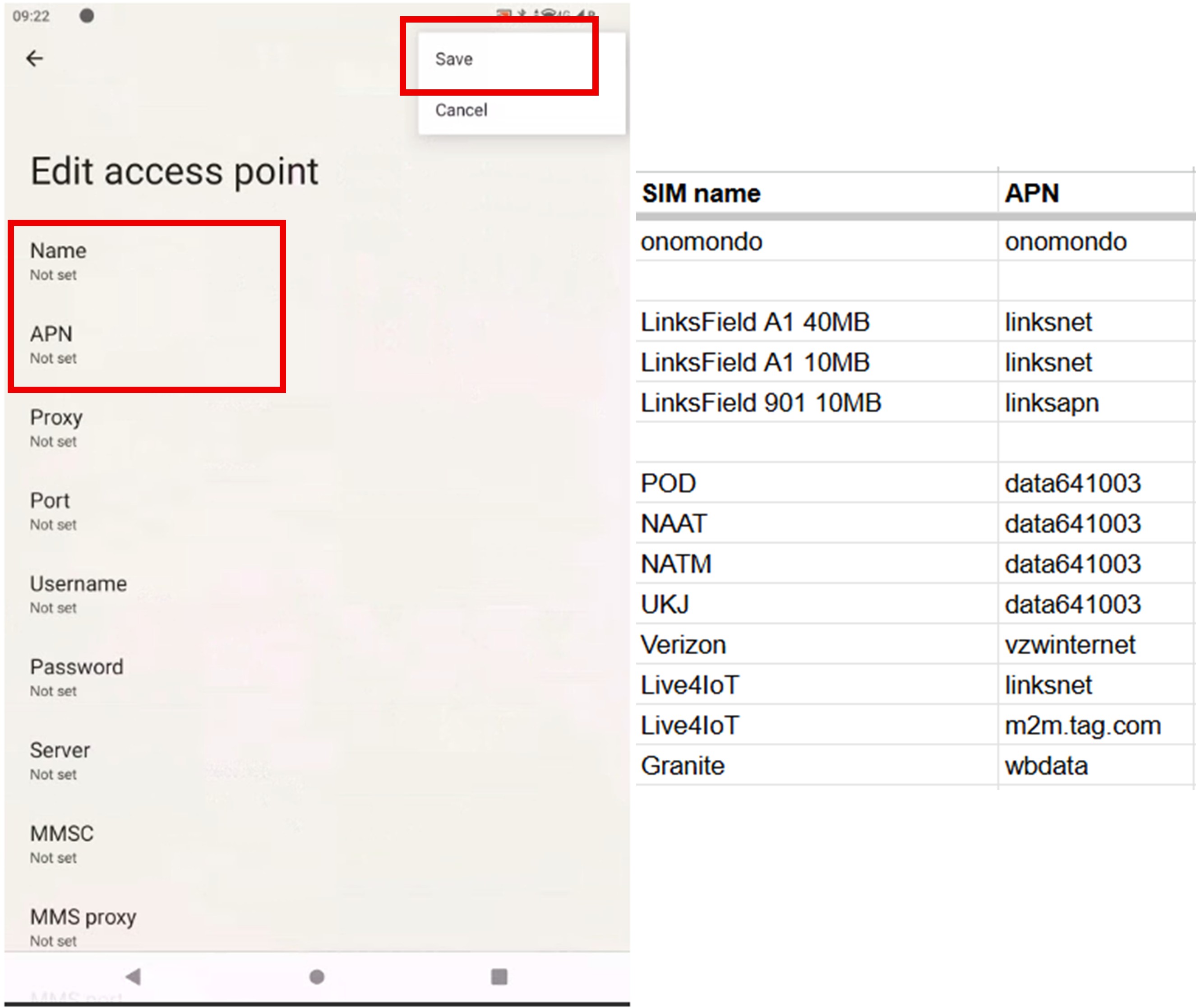

  • Fill in the details below and then Select The three dots in the Top right corner

  • Name - Tagmarshal

  • APN - data641003

  • Select Save from the Options and Select the Created APN


  • Exit from the Network Settings and Return to the Main Apps Menu

  • Select Scalefusion to lock down the device

  • The Map will load and will remain Pinned to your Screen
